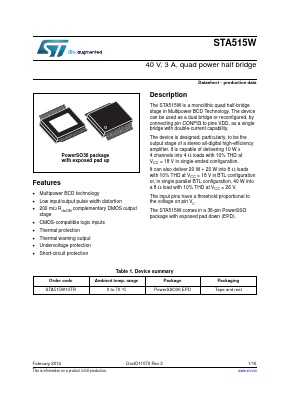

STA515W Datasheet - STMicroelectronics

Description
The STA515W is a monolithic quad half-bridge stage in Multipower BCD Technology. The device can be used as a dual bridge or reconfigured, by connecting pin CONFIG to pins VDD, as a single bridge with double-current capability.

FEATUREs
• Multipower BCD technology
• Low input/output pulse width distortion
• 200 mΩ RdsON complementary DMOS output stage
• CMOS-compatible logic inputs
• Thermal protection
• Thermal warning output
• Undervoltage protection
• Short-circuit protection
