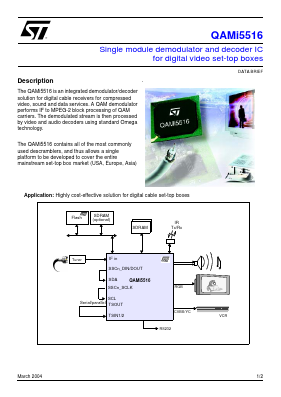

Description
The QAMi5516 is an integrated demodulator/decoder solution for digital cable receivers for compressed video, sound and data services. A QAM demodulator performs IF to MPEG-2 block processing of QAM carriers. The demodulated stream is then processed by video and audio decoders using standard Omega technology.

FEATUREs
■ Decodes ITU-T J.83-Annexes A/B/C and DVBC bitstreams
■ Integrated high performance ADC
■ Support for 4-, 16-, 32-, 64-, 128-, 256-point constellation variable symbol
■ Rate from 0.87 MBaud to 11.7 MBaud
■ Robust integrated adaptative equalizer
■ I²C serial bus and I²C repeater
■ Lock time <100ms
■ 180 MHz 32-bit ST20 CPU
    ● 8 Kbytes internal SRAM, 8 Kbytes of I-cache and 8 Kbytes of D-cache
■ Integrated transport demultiplexer
    ● DES, DVB and ICAM descramblers
    ● Support for more than 48 PID slots
■ MPEG-2 MP@ML video decoder
    ● Fully programmable horizontal and vertical SRCs
■ Audio features
    ● MPEG-1 layers I/II decoding (MP3 option)
    ● Dolby® Digital 5.1 down-mixed to 2 channels
    ● Dolby® Pro Logic compatible
    ● SRS® TruSurround® virtual surround sound
    ● PCM audio input
    ● Integrated audio DACs
■ Graphics/display
    ● 5 display planes (background, video, still, OSD and cursor)
    ● 2, 4 and 8bpp CLUT graphics
■ PAL/NTSC/SECAM video encoder
    ● RGB, CVBS, Y/C and YUV outputs with 10-bit DACs
    ● Encoding of CGMS, teletext, WSS, VPS, closed caption
    ● Macrovision 7.01 copy protection
■ Interfaces
    ● CableCard and dual DVB common interface
    ● 5 ASCs (UARTs) with Tx and Rx FIFOs
    ● 6 x 8-bit banks of parallel I/O
    ● 2 smartcard interfaces and clock generators
    ● 4 PWM channels
    ● Multichannel IR transmitter/receiver
    ● Low power/RTC/watchdog controller
■ Module features
    ● Low power consumption (~1500 mW)
    ● Package: 27 x 27 mm 416 PBGA, 1 mm pitch
