SWITCHING CHARACTERISTICS

Test Bit Stream (TBS)

CS5378

TBSDATA

MCLK

t1

t2

Note: Example timing shown for a 256 kHz output rate and no programmable delays.

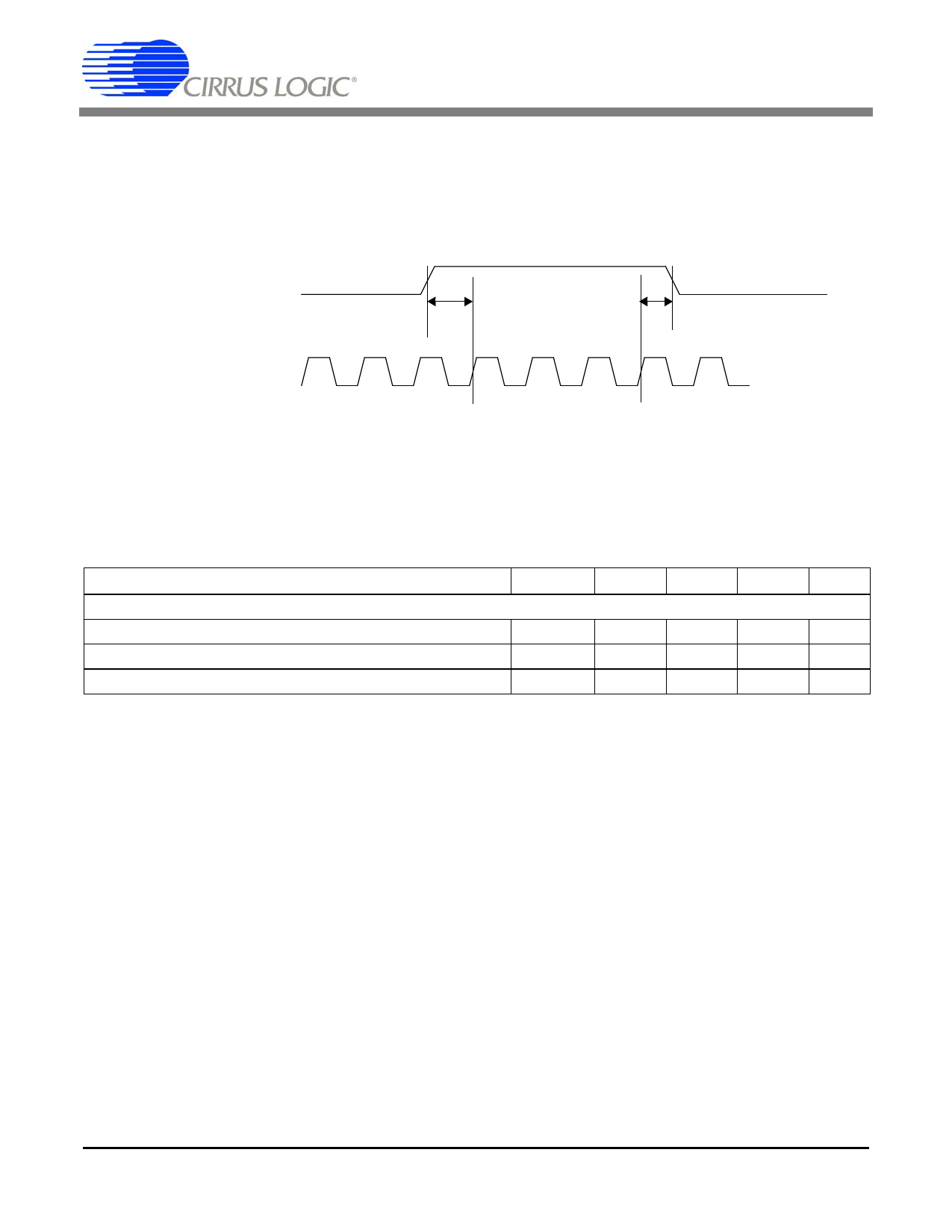

Figure 8. TBS Output Data Timing

Parameter

TBS Data Output Timing

TBS Data Bit Rate

TBS Data Rising to MCLK Rising Setup Time

MCLK Rising to TBS Data Falling Hold Time

Symbol Min

Typ

Max Unit

t1

(Note 5)

t2

-

256

60

-

60

-

-

kbps

-

ns

-

ns

5. TBSDATA can be delayed from 0 to 63 full bit periods. The timing diagram shows no TBSDATA delay.

DS639F1

17
