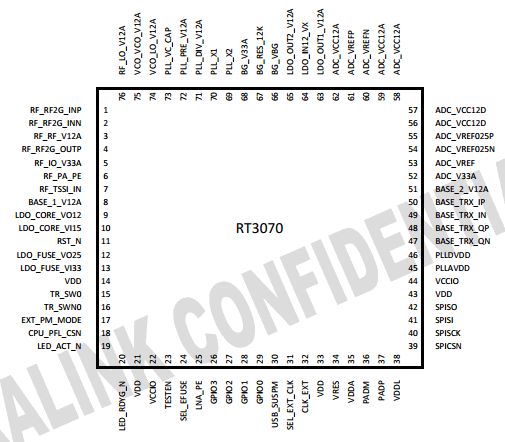

The RT3070 is a highly integrated MAC/BBP and 2.4 GHz RF single chip witch 150Mbps PHY rate supporting.

Ralink / Mediatek RT5370

Description
MediaTek RT5370 is a high-performance 802.11n Wi-Fi SoC with USB 2.0 interface. RT5370 features integrated 802.11n baseband (150Mbit/s), MAC (media access control), power amplifier and low-noise amplifier, along with both transmit-receive and antenna diversity switches.
Together with an optimised RF architecture and baseband algorithms, RT5370 offers superb performance and reliable throughput with low power consumption.

[Ralink]

802.11n 1T1R USB Single Chip
Highly Integrated chipsets with MAC, BB, 2.4G RF, PA, LNA, and RF Switch

Overview
The RT3370 is a highly integrated 802.11n USB single chip. With radio, baseband and power amplifiers all contained on a single die, these chipsets deliver the high performance, low power consumption and attractive pricing, all required for integration into today’s high volume PC, broadband connectivity, and consumer electronics products.

Features

• CMOS Technology with integrated RF, Baseband, and MAC
• PA, LNA, and RF Switch integrated
• Support for PHY Rate up to 150Mbps
• Legacy and High Throughput Modes
• 20MHz/40MHz Bandwidth
• Reverse Direction Grant Data Flow and Frame
• Aggregation
• Support for WEP 64/128, WPA, WPA2,TKIP, AES and WAPI
• QoS-WMM, WMM-PS
• WPS: PIN, PBC
• Multiple BSSID Support
• USB 2.0
• Cisco CCX Support up to v5.0
• Bluetooth Co-existence
• Low Power with Advanced Power Management
• Operating System – Windows XP 32/64, 2000, Vista 32/64,
   Windows 7 (inbox driver) Linux and Macintosh

[Ralink]

Product Description
The RT5370 is a highly integrated MAC/BBP and 2.4 GHz RF/PA/LNA single chip with 150Mbps PHY rate supporting. It fully complies with IEEE 802.11n and IEEE 802.11 b/g feature rich wireless connectivity at high standards, delivers reliable, cost-effective, throughput from an extended distance. Optimized RF architecture and baseband algorithms provide superb performance and low power consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data processing accelerators without overloading the host processor. The RT5370 is designed to support standard based features in the areas of security, quality of service and international regulation, giving end users the greatest performance anytime in any circumstance.

Features
◆ CMOS Technology with PA, LNA, RF, Baseband,
   and MAC Integrated.
◆ 1T1R Mode with 150Mbps PHY Rate for Both
   Transmit and Receiving.
◆ Legacy and High Throughput Modes
◆ 20MHz/40MHz Bandwidth
◆ Reverse Direction Grant Data Flow and Frame
   Aggregation
◆ WEP 64/128, WPA, WPA2,TKIP, AES, WAPI
◆ QoS-WMM, WMM-PS
◆ WPS,PIN,PBC
◆ Multiple BSSID Support
◆ USB 2.0
◆ Cisco CCX Support
◆ Bluetooth Co-existence
◆ Low Power with Advanced Power Management
◆ Operating Systems - Windows XP 32/64, 2000,
   Windows 7,Vista 32/64 , Linux, Macintosh

Application
• IEEE802.11 b/g/n Wireless Local Area Networks
• USB 2.0 Wi-Fi Dongle.
