CS4281 Datasheet PDF : 36 Pages
| |||

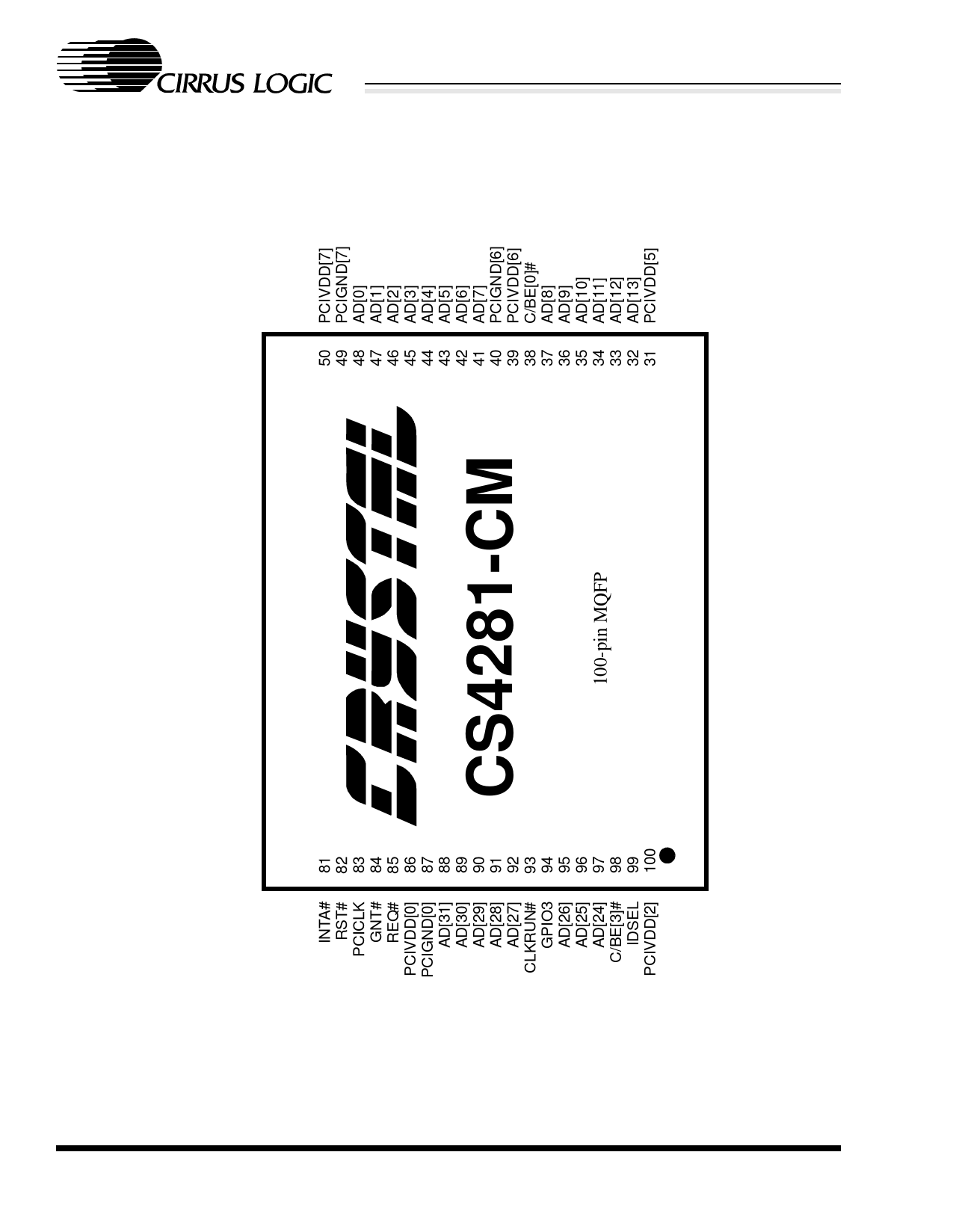

PIN DESCRIPTION
TEST 51
JACX 52
JACY 53
JBCX 54
JBCY 55
JAB1 56
JAB2 57
JBB1 58
JBB2 59
MIDIIN 60
CVDD[2] 61
CGND[2] 62
MIDIOUT 63
TESTSEL 64
CGND[3] 65
ASDIN2/GPI01 66
PME# 67
VAUX 68
CRYVDD 69
VOLUP 70
VOLDN 71
CRYGND 72
VDD5REF 73
ABITCLK 74
ASDOUT 75
ASDIN 76
ASYNC 77
ARST# 78
EECLK/GPOUT/PCREQ# 79
EEDAT/GPIO2/PCGNT# 80
CS4281
CrystalClear™ PCI Audio Interface
30 PCIGND[5]
29 AD[14]
28 AD[15]
27 C/BE[1]#
26 PAR
25 IRQA
24 PERR#
23 STOP#
22 PCIGND[4]
21 PCIVDD[4]
20 DEVSEL#
19 IRQB
18 IRQC
17 TRDY#
16 IRDY#
15 FRAME#
14 C/BE[2]#
13 CGND[1]
12 CVDD[1]
11 AD[16]
10 AD[17]
9 AD[18]
8 PCIVDD[3]
7 PCIGND[3]
6 AD[19]
5 AD[20]
4 AD[21]
3 AD[22]
2 AD[23]
1 PCIGND[2]
CIRRUS LOGIC PRODUCT DATA SHEET
24
DS308PP4
