CS5378

Low-power Single-channel Decimation Filter

Cirrus Logic

SWITCHING CHARACTERISTICS

Serial Data Interface Timing

DRDY

SCK

MISO

t1

t2

t3 t4

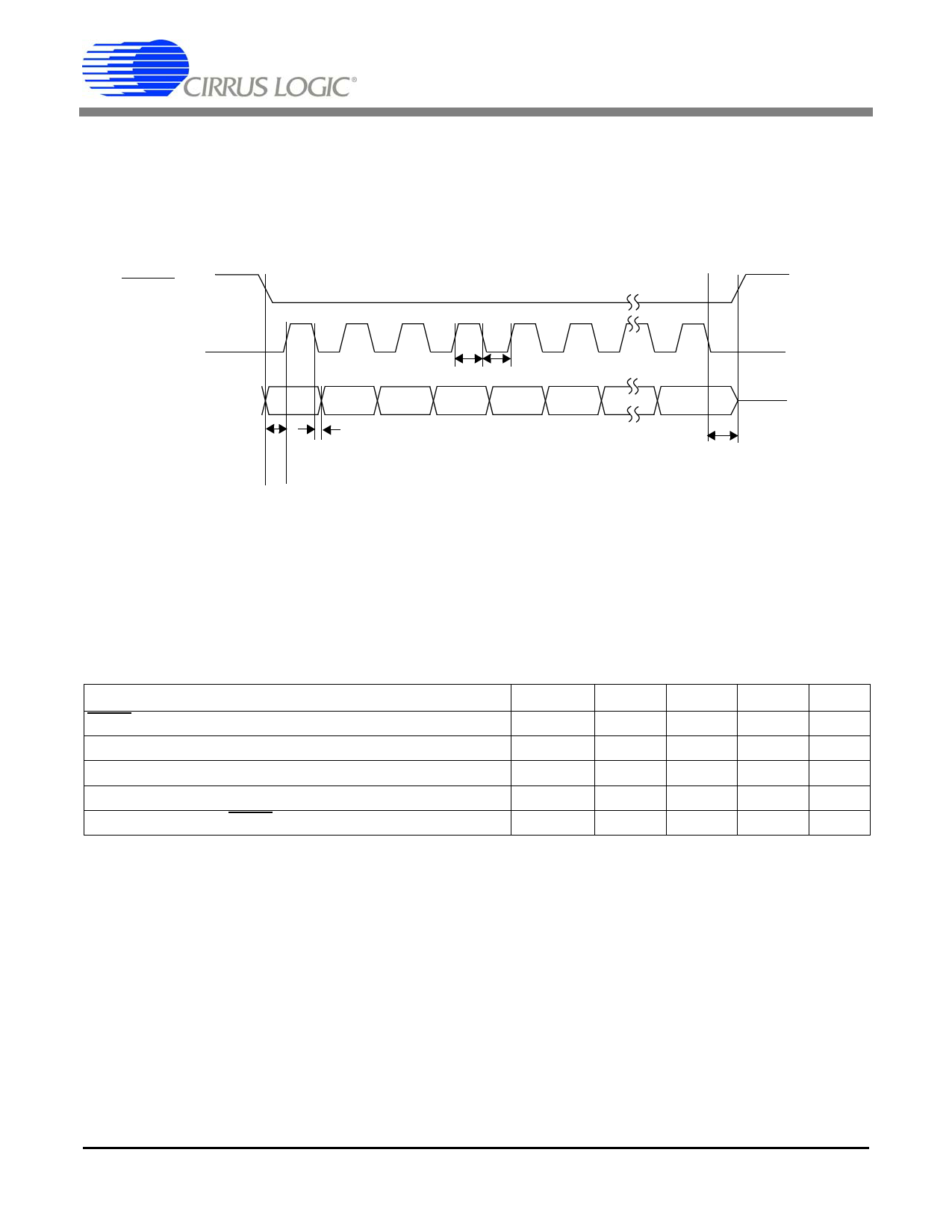

Figure 6. Serial Data Read Timing

CS5378

t5

Parameter

DRDY Falling Edge to SCK Rising

SCK Falling to New Data Bit

SCK High Time

SCK Low Time

Final SCK Falling to DRDY Rising

Symbol Min

Typ

Max Unit

t1

60

-

-

ns

t2

-

-

120

ns

t3

120

-

-

ns

t4

120

-

-

ns

t5

60

-

-

ns

DS639F2

15
